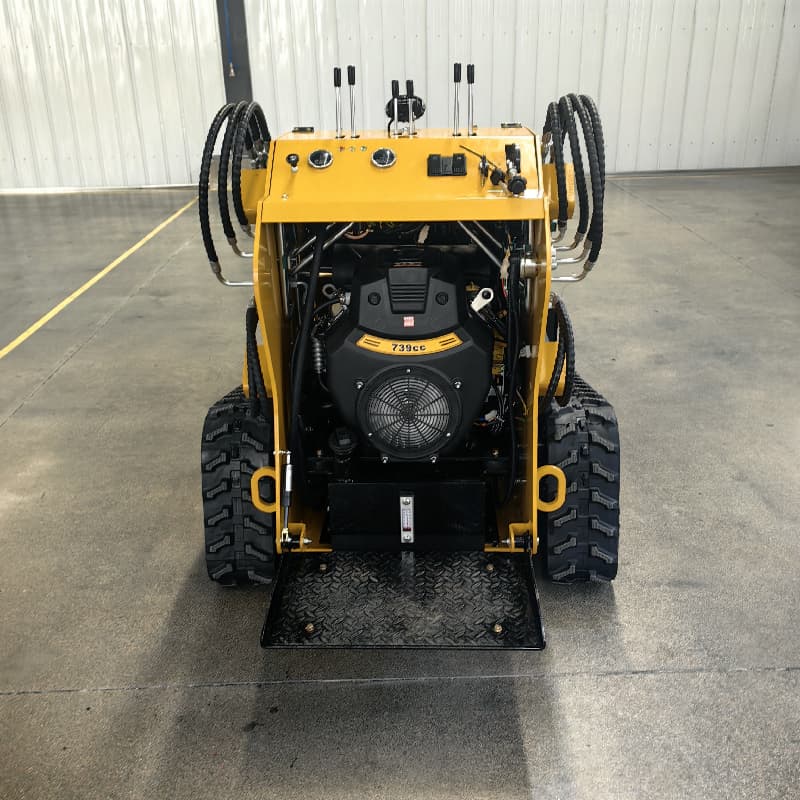

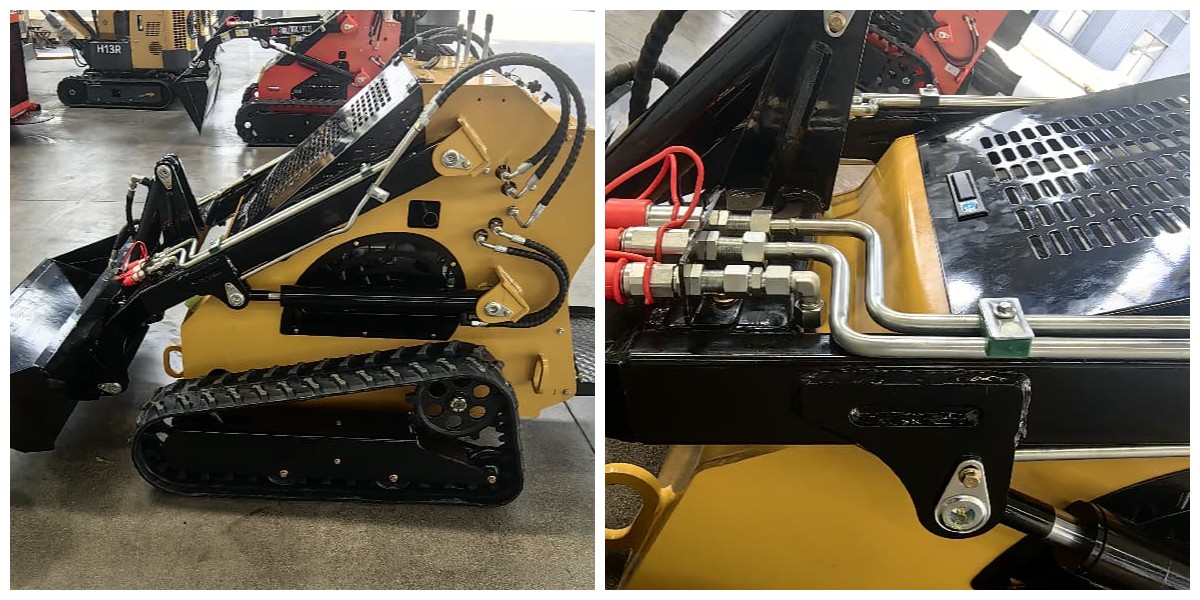

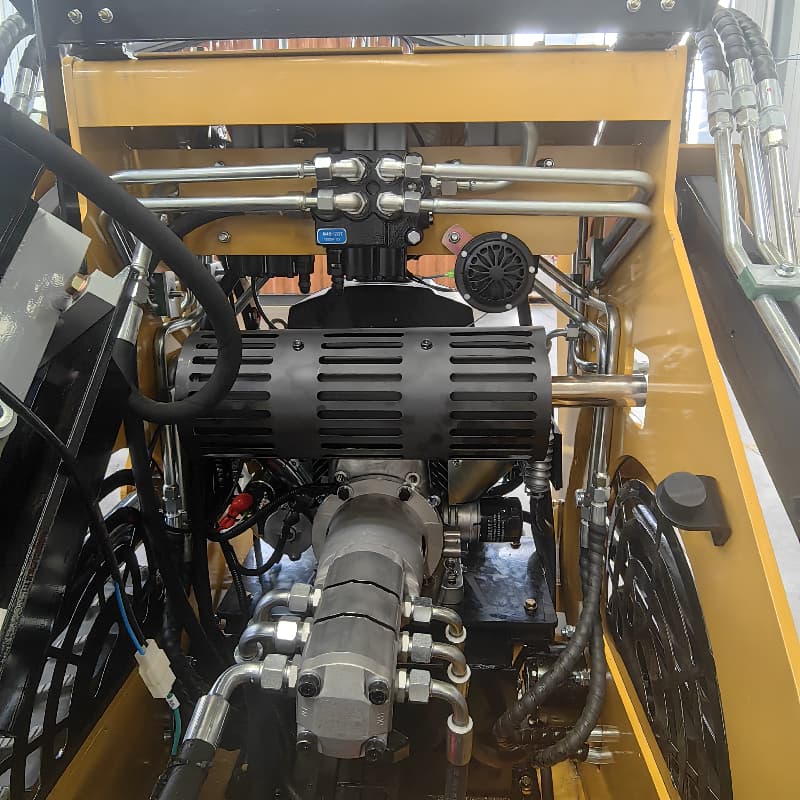

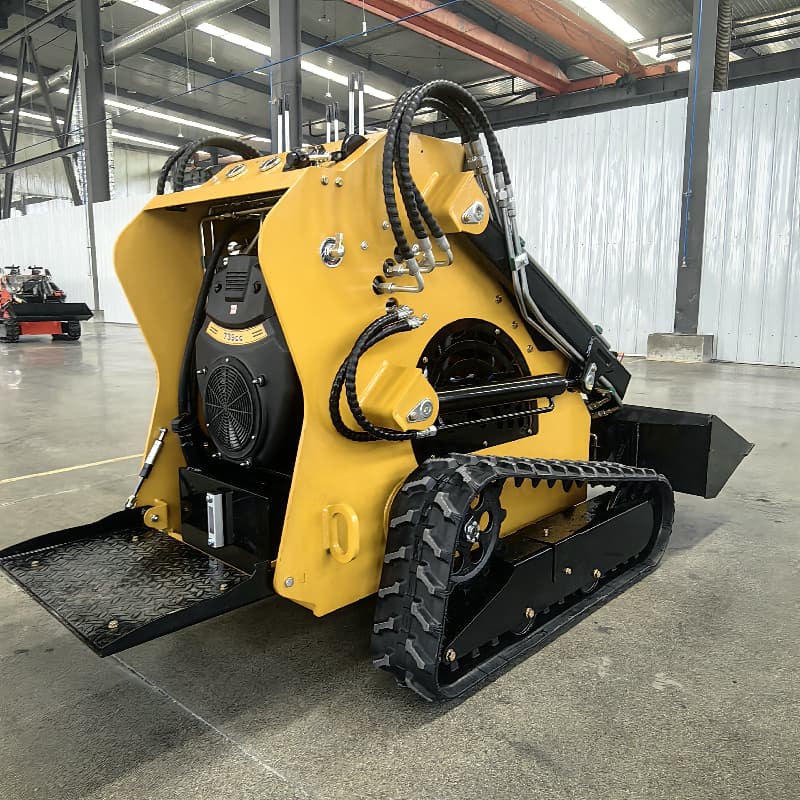

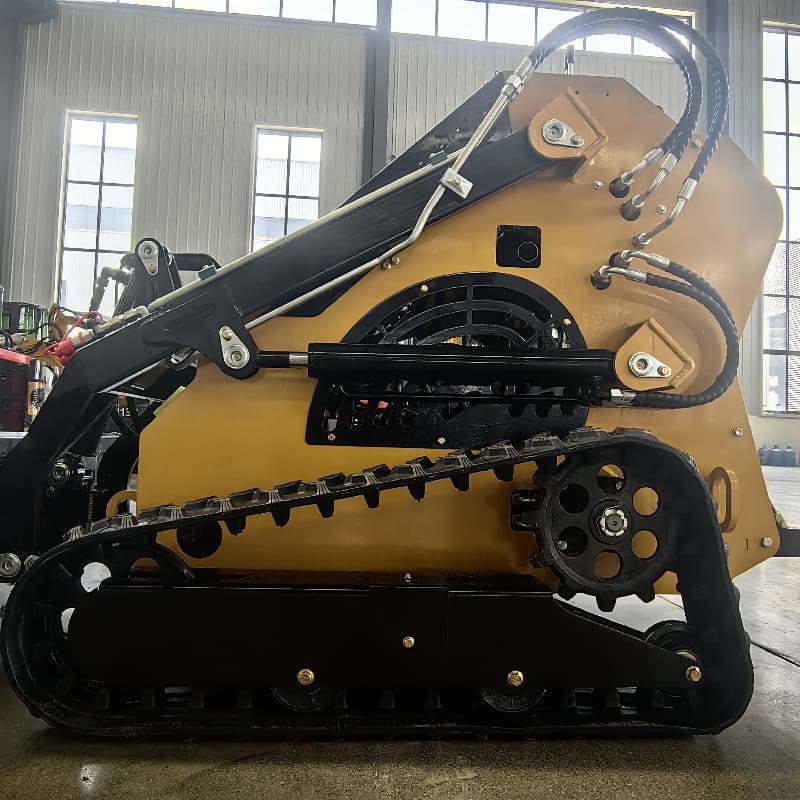

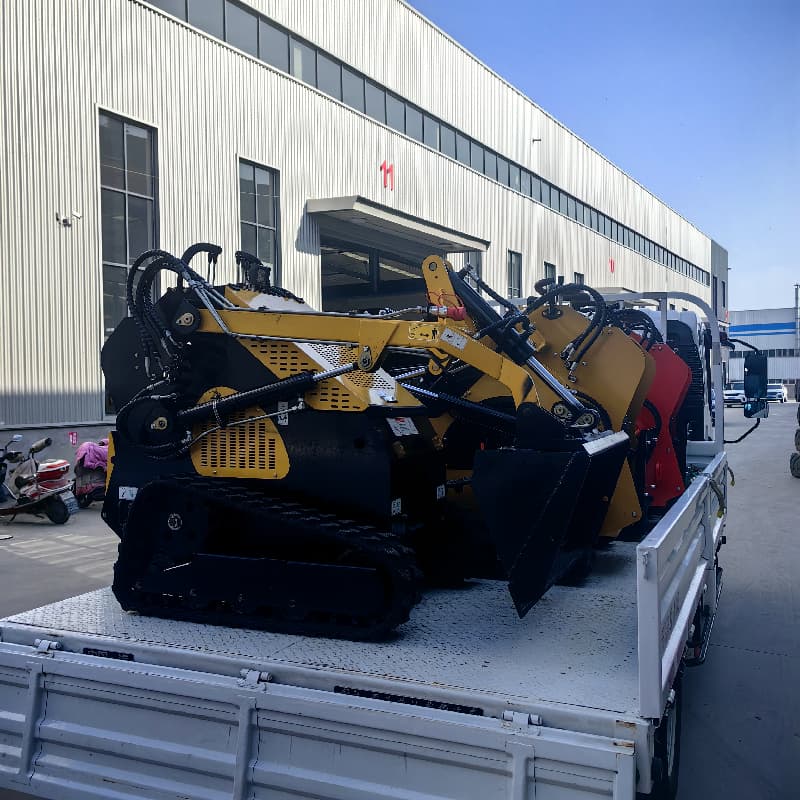

Skid Steer Hydraulic Drive
ersatility:
Wide range of compatible attachments for diverse tasks.
Terrain Adaptability:
Performs well on soft, uneven, or slippery surfaces where wheeled skid steers may struggle.
Compact and Maneuverable:
Ideal for jobs in confined spaces or residential areas.
Standing or Seated Operation:
Many Skid Steer Hydraulic Drive feature a standing operator platform for improved visibility and easy mounting/dismounting.
Joystick Controls: Simple and intuitive, allowing precise movement.
Visibility: Unobstructed view of the work area for safer and more efficient operation.
Optional Cab Features:
Some models offer enclosed cabs with heating and air conditioning for comfort.
Landscaping:
Spreading mulch, gravel, or soil.
Grading lawns or preparing sites for sod installation.
Removing stumps, roots, and debris.
Parameter table | Accessory brands | |
Item name | 430 | |
Working weight of the whole machine(kg) | 920 | |
Bucket capacity(m³). | 0.12 | |
Traveling speed(Km/h) | 3 | |
Max. lifting force(Kg). | 280 | |
Max. working height(mm). | 2235 | |
Maximum unloading height(mm). | 1340 | |
Bucket discharge angle | 25 | |
Wheelbase H(mm) | 780 | |
Engine model | Bristol-Myers Squibb | |
Maximum flow rate of spare fuel line(L/min) | 65 | |
Horsepower hp | 23 | |
Nominal speed rpm | 3600 | |
Main pump type/model | gear pumps | Tianjin Walking |
Maximum flow rate of main pump(L/min). | 65 | |
Multi-way valve | 2-way + 3-way manual valves | Huai'an Taiheng |
Traveling hydraulic motor type. | cycloid motor | Shandong Kern Hydraulics/Eaton |
Motor displacement(ml) | 375 | |
Rubber(bandwidth*pitch*number of sections). | 180*72*37 | |
Tensioning type | Hydraulic Tensioning | Crawler Original |
Total length(mm) | 2250 | |
Total width(mm). | 1100 | |
Total Height(mm). | 1260 | |
Construction:
Trenching for utilities or drainage.
Loading materials into trucks or moving them across sites.
Demolishing small structures or breaking concrete.
Agriculture:
Digging irrigation channels or preparing fields.
Transporting feed, hay, or other materials.
Clearing barns or animal enclosures.
Snow Removal:
Compact design makes it effective for clearing sidewalks, pathways, and small driveways.
Snowblower or plow attachments enhance functionality.
Municipal Work:
Cleaning streets and pathways.
Maintaining parks and public spaces.
Digging or repairing small utility lines.
