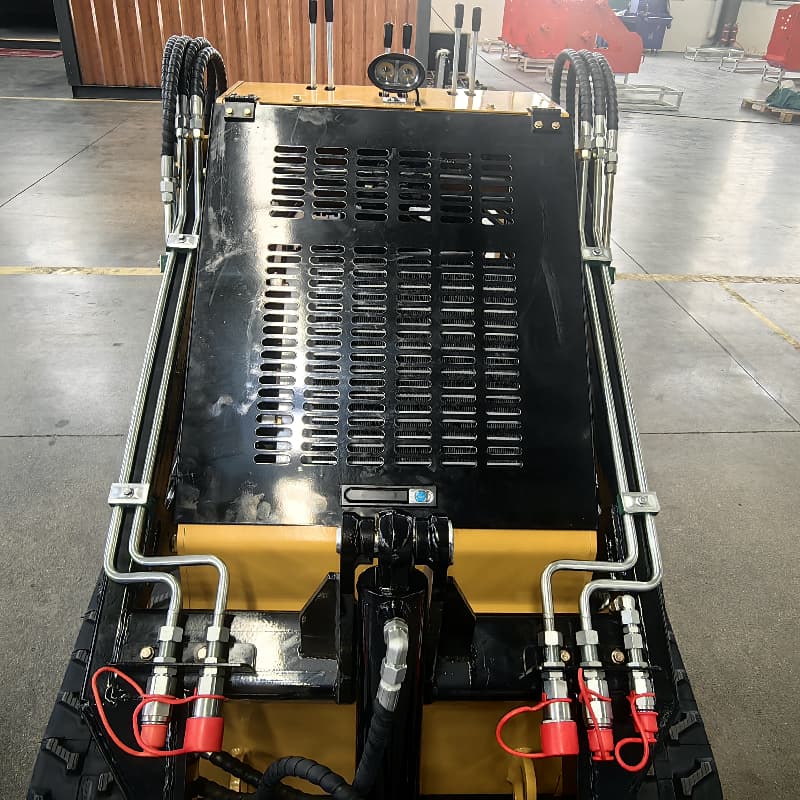

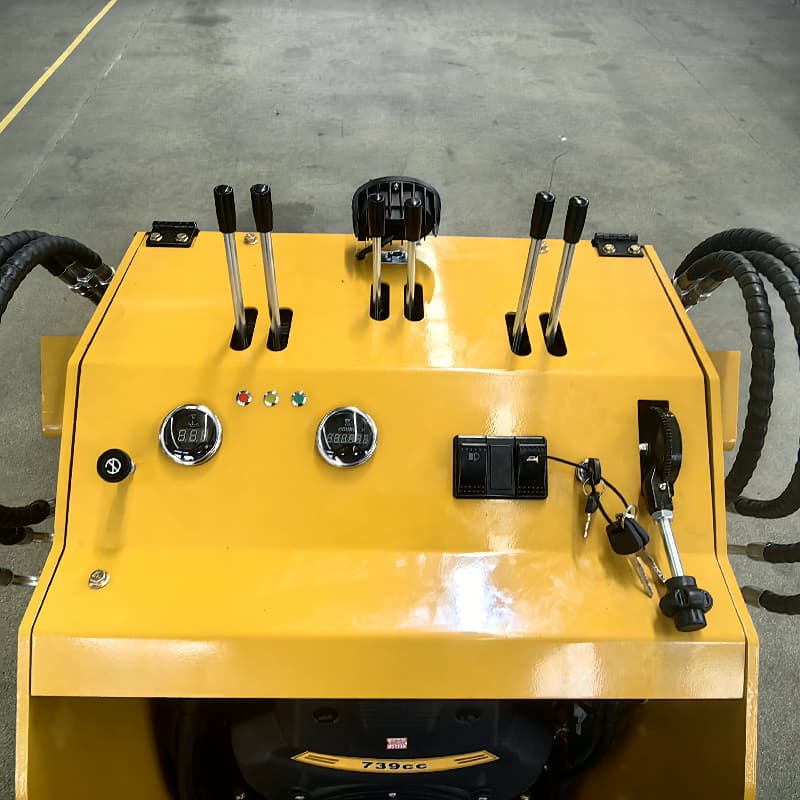

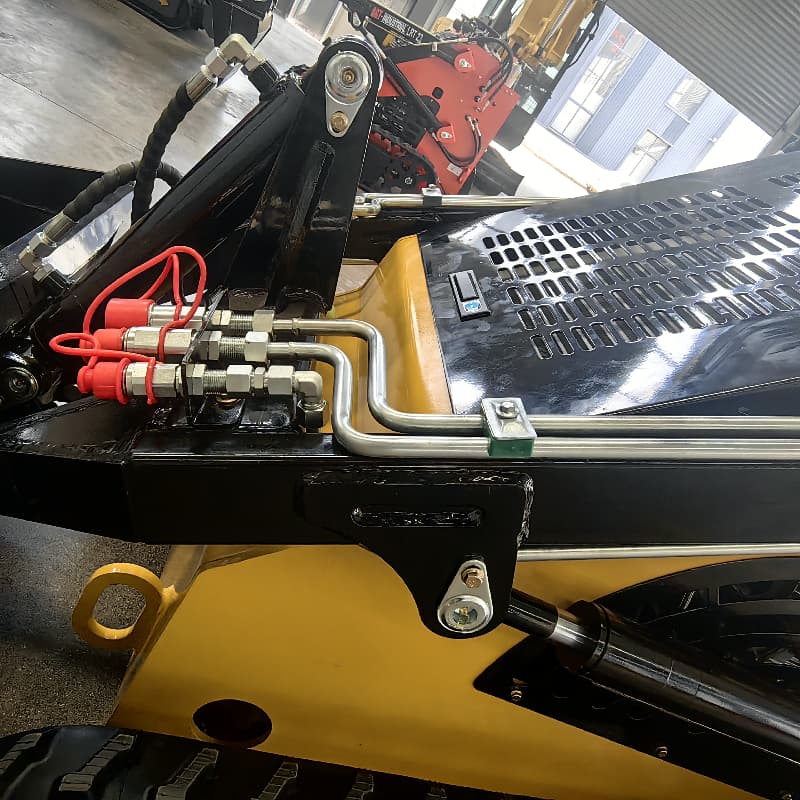

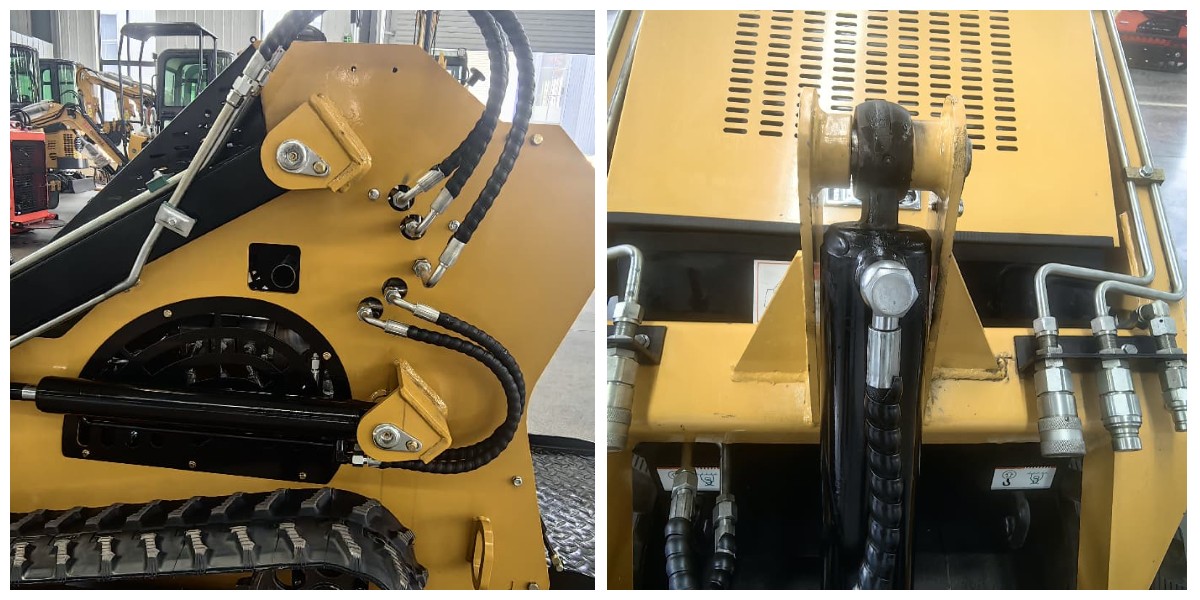

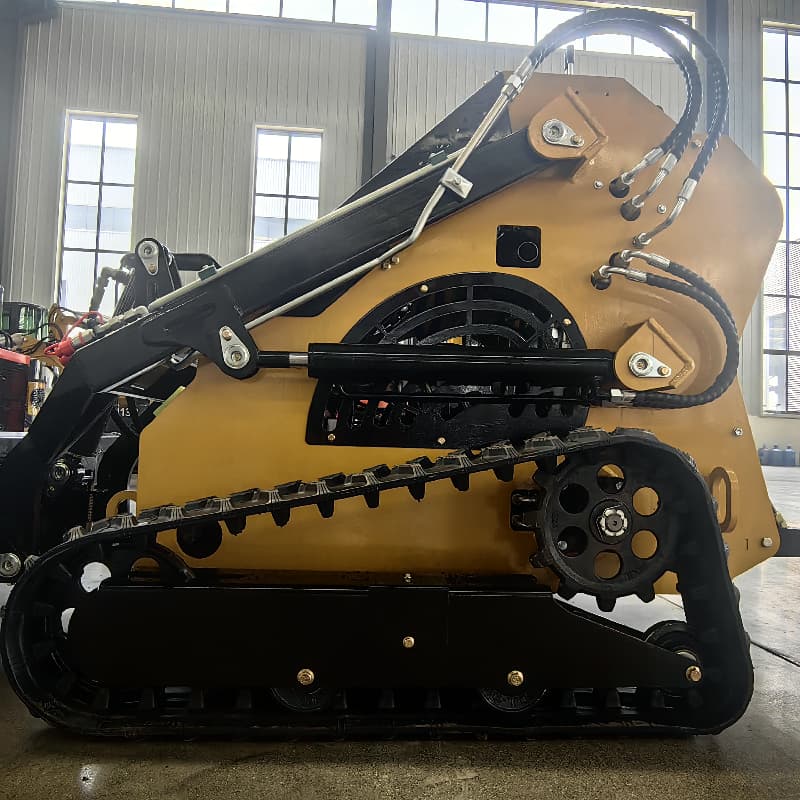

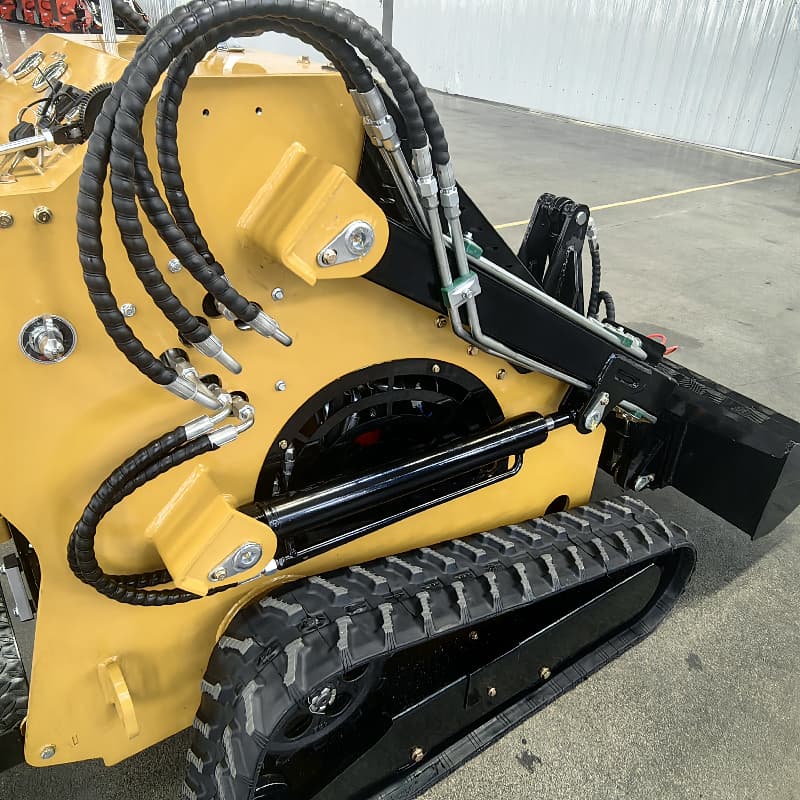

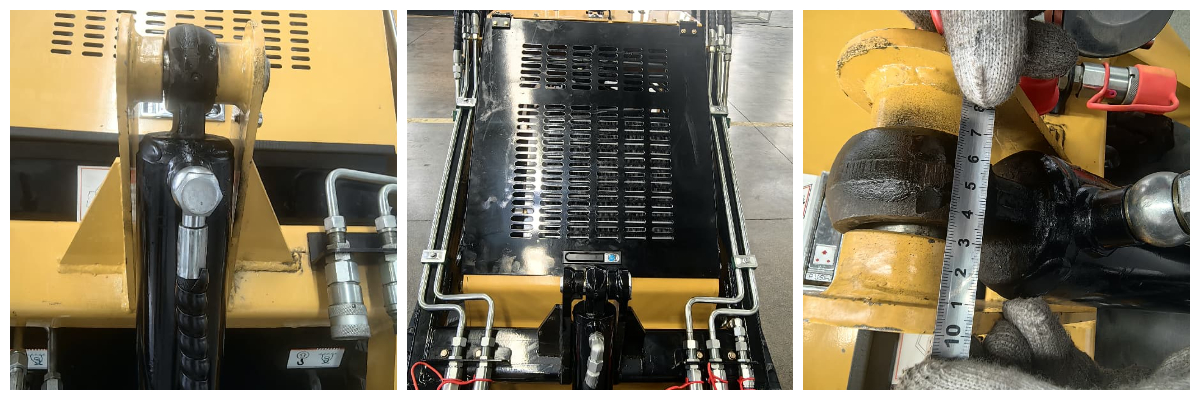

Mini Wheel Skid Steer Loader Wheeled Construction
Low Surface Impact:
Tracks distribute weight evenly, reducing soil damage and compaction.
Ease of Use:
Intuitive controls and excellent visibility simplify operation for new or experienced users.
Durability:
Built to withstand tough environments and frequent use.
Size and Compact Design:
Compact Dimensions: Allows operation in confined spaces, such as residential yards and narrow pathways.
Weight: Generally ranges from 700 to 1,500 kg (1,500 to 3,300 lbs).
Width: Typically around 1 to 1.5 meters (3 to 5 feet) for easy navigation.
Wheels and Mobility:
Rubber Tires: Provide smooth operation on hard, flat, and paved surfaces.
Terrain Suitability:
Best for concrete, asphalt, and compacted soil.
Less effective on loose or muddy ground compared to tracked models.
Speed: Faster than tracked loaders, making it ideal for projects requiring frequent relocation.
Maneuverability:
Skid-steering mechanism enables tight turning and precise movement.
Parameter table | Accessory brands | |
Item name | 430 | |
Working weight of the whole machine(kg) | 920 | |
Bucket capacity(m³). | 0.12 | |
Traveling speed(Km/h) | 3 | |
Max. lifting force(Kg). | 280 | |
Max. working height(mm). | 2235 | |
Maximum unloading height(mm). | 1340 | |
Bucket discharge angle | 25 | |
Wheelbase H(mm) | 780 | |
Engine model | Bristol-Myers Squibb | |
Maximum flow rate of spare fuel line(L/min) | 65 | |
Horsepower hp | 23 | |
Nominal speed rpm | 3600 | |
Main pump type/model | gear pumps | Tianjin Walking |
Maximum flow rate of main pump(L/min). | 65 | |
Multi-way valve | 2-way + 3-way manual valves | Huai'an Taiheng |
Traveling hydraulic motor type. | cycloid motor | Shandong Kern Hydraulics/Eaton |
Motor displacement(ml) | 375 | |
Rubber(bandwidth*pitch*number of sections). | 180*72*37 | |
Tensioning type | Hydraulic Tensioning | Crawler Original |
Total length(mm) | 2250 | |
Total width(mm). | 1100 | |
Total Height(mm). | 1260 | |
Power and Engine:
Engine Type: Diesel-powered for consistent performance and efficiency.
Horsepower: Ranges from 20 to 50 HP, depending on the model.
Fuel Capacity: Designed for extended work periods without frequent refueling.
Operating Capacity:
Rated Operating Capacity (ROC): Varies from 500 to 1,500 lbs, depending on the model.
Bucket Capacity: Usually between 0.1 to 0.3 cubic meters (0.1 to 0.4 cubic yards).
Lift Height: Ranges from 1.5 to 2.5 meters (5 to 8 feet), suitable for small-scale material handling.
A Mini Track Skid Steer Loader is a versatile and efficient machine tailored for small-scale projects and tight workspaces. Its ability to handle soft or uneven terrain and support various attachments makes it a go-to choice for landscaping, construction, and more. Whether you're spreading materials, digging trenches, or clearing debris, this loader offers the power and flexibility needed to get the job done efficiently.
